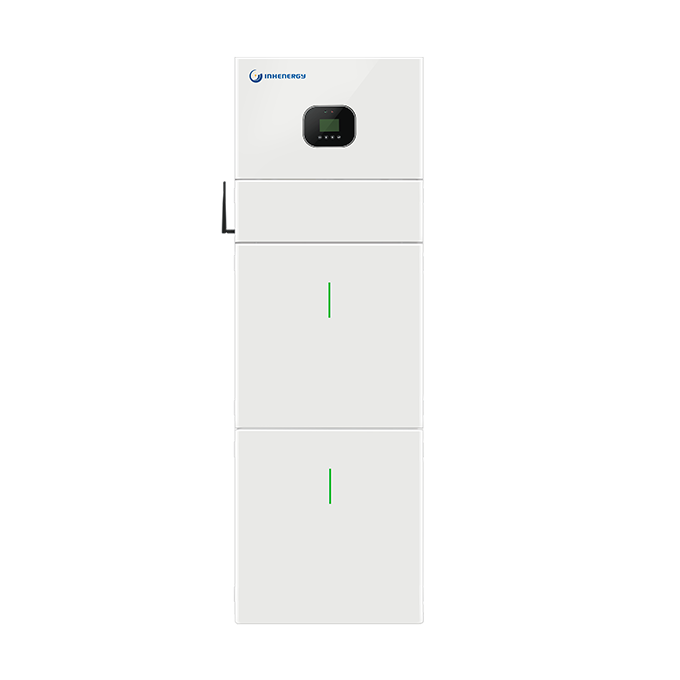

Hybrid Inverters

EHI-4~6K-SL

  • 4~6kW
  • Single Phase
  • Low Voltage

Technical Parameters

Enjoy your life with Inhenergy all-in-one hybrid inverter, which is best for your home.  The all-in-one design increases aesthetics and reduces dust.  Small changes can bring a different experience.  Enjoy the convenience of electricity 24 hours a day.



  • fuyong2.png

    Core Value
    Future proof battery ready
    Low initial investment

  • fuyong1.png

    High Yields
    DC/AC ratio up to 1.5
    Max. efficiency 98%
    Dual MPP trackers

  • gongsijieshaoyoushishujuTop3.png

    Safety and Reliability
    Type II SPD on DC side
    Support export limitation

  • rentou.png

    User Friendly
    Compact design for one person installation

  • 10ms-129.png

    Leading Functions
    UPS function, 10ms transition
    Smart Meter Integrated

  • dianchi.png

    System Flexibility
    Support lithium and lead-acid battery

Technical Data
Model NumberEHI-4K-SLEHI-5K-SLEHI-6K-SL
AC Output (Backup)


Peak Output Apparent Power4kVA5kVA6kVA
Peak Output Apparent Power5kVA,10sec6kVA,10sec7kVA,10sec
Nominal Output Voltage
230V ±20%
Nominal Output Frequency
50/60Hz±0.2%
Output THDv (@Linear Load)
<3%
Efficiency


Max. PV Efficiency
98.00%
Euro. PV Efficiency
97.50%
Protection


DC Switch
Yes
Anti-islanding Protection
Yes
Output Over Current
Yes
DC Reverse Polarity Protection
Yes
String Fault Detection
Yes
AC/DC Surge Protection
Yes
Insulation Detection
Yes
AC Short Circuit Protection
Yes
General Specifications


Dimensions (LxWxH)
250mm*550mm*1650mm
Weight
140kg
Operating Temperature Range
–25 °C ~ +60 °C
Noise (dB)
≤25dB
Cooling Type
Natural
Max. Operation Altitude
3000m
IP Class
IP65
Topology
Transformerless
Communication
WiFi/4G/USB/CAN/RS485
Display
LCD and App
Certification & Standard
EN 62109-1/EN 62109-2/EN 62477-1/IEC 61000-6-1/IEC 61000-6-3/CEI 0-21/ UNE 217001/UNE 217002/VDE 0126/IEC 61727/IEC 62116/EN 50549-1/G98/ G99
Battery Data


Physical


Battery type
LFP (LiFePO4)
System Weight
54kg
Dimensions (LxWxH)
550mm*195mm*550mm
IP Protection
IP65
Warranty
10 years
Electrical


Energy Capacity
5.3kWh
Usable Capacity
5.1kWh
Depth of Discharge (DoD)
80%
Nominal Voltage
51.2V
Operating Voltage Range
40~58V
Cycle Life
>6000*cycles
Operation


Max. Charge/Discharge Current
100/100A
Max. Charge/Discharge Power
5.0/5.0kW
Operating Temperature Range
-28~55℃
Humidity
0~95%(no condensation)
BMS


Communication
RS485/CAN
Certificate


Certification & Standard
IEC/EN 62619,IEC63056, IEC61000-6-1, 1EC61000-6-3,UN3480
