Accessories

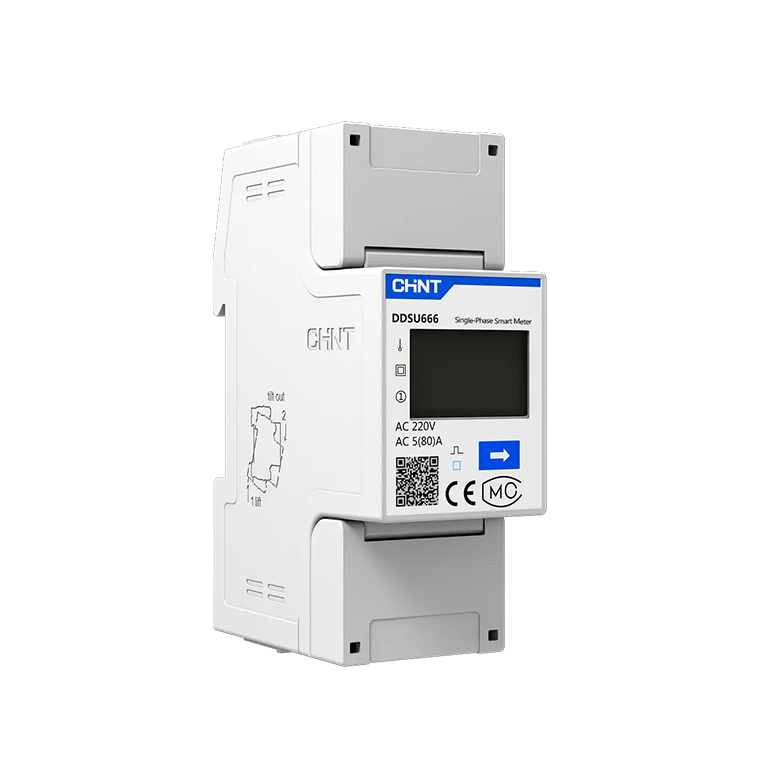

Single Phase Smart Meter

  • Single Phase
  • RS485
  • LCD

Technical Parameters

Type DDSU666 single phase electronic energy meter (din-rail) (hereinafter referred to as theinstrument”) is designed based on power monitoring and energy metering demands for electric powersystem, communication industry, construction industry, etc. as a new generation of intelligentinstrument combining measurement and communication function, mainly applied into themeasurement and display for the electric parameters in the electric circuit including voltage, currentpower, frequency, power factor, active energy, etc. The network can be realized through RS485communication interface and external device. Adopting the standard DIN35mm din rail mounting andmodular design, it is characterized with small volume, easy installation and easy networking, widelyapplied into the intemnal energy monitoring and assessment for industrial and mining enterprises, hotels.schools, large public buildings.

  • chanpinxiangqingyeyoushisuijitubiao1.png

    Plug and play

  • chanpinxiangqingyeyoushisuijitubiao.png

    Metering the positive and negative active power;

  • gongsijieshaoyoushishuju6.png

    Adopting wide LCD, it has clear vision.

  • gongsijieshaoyoushishuju50.png

    RS485 communication function

  • gongsijieshaoyoushishuju80.png

    Modular design

  • .png

    Adopting DIN35mm standard din rail mounting

  • gongsijieshaoyoushishujuTop3.png

    Easy installation and easy networking

Technical Data
CatalogParameter
Dimension (W/D/H)98mm*65mmx36mm
Weight0.2kg(Approx.)
Operating range limit-40°C to+75℃
Storage range limit-40°C to+85℃
Relative humidity≤95%RH
Ingress protectionIP54
Connection type1P2W
Accuracy Class 1.0 for active
Nominal voltage(Un)120V220V230V240V
Operating range0.7Un ~1.2Un
Power consumption <1W,5VA
CT1.5(6)A
DC5(80)A
Frequency50Hzor 60Hz
CertificationIEC62052-11,IEC62053-21
